Cable Trays

  1. Home
  3. Products
  5. Cable Trays – Ladder & Perforated

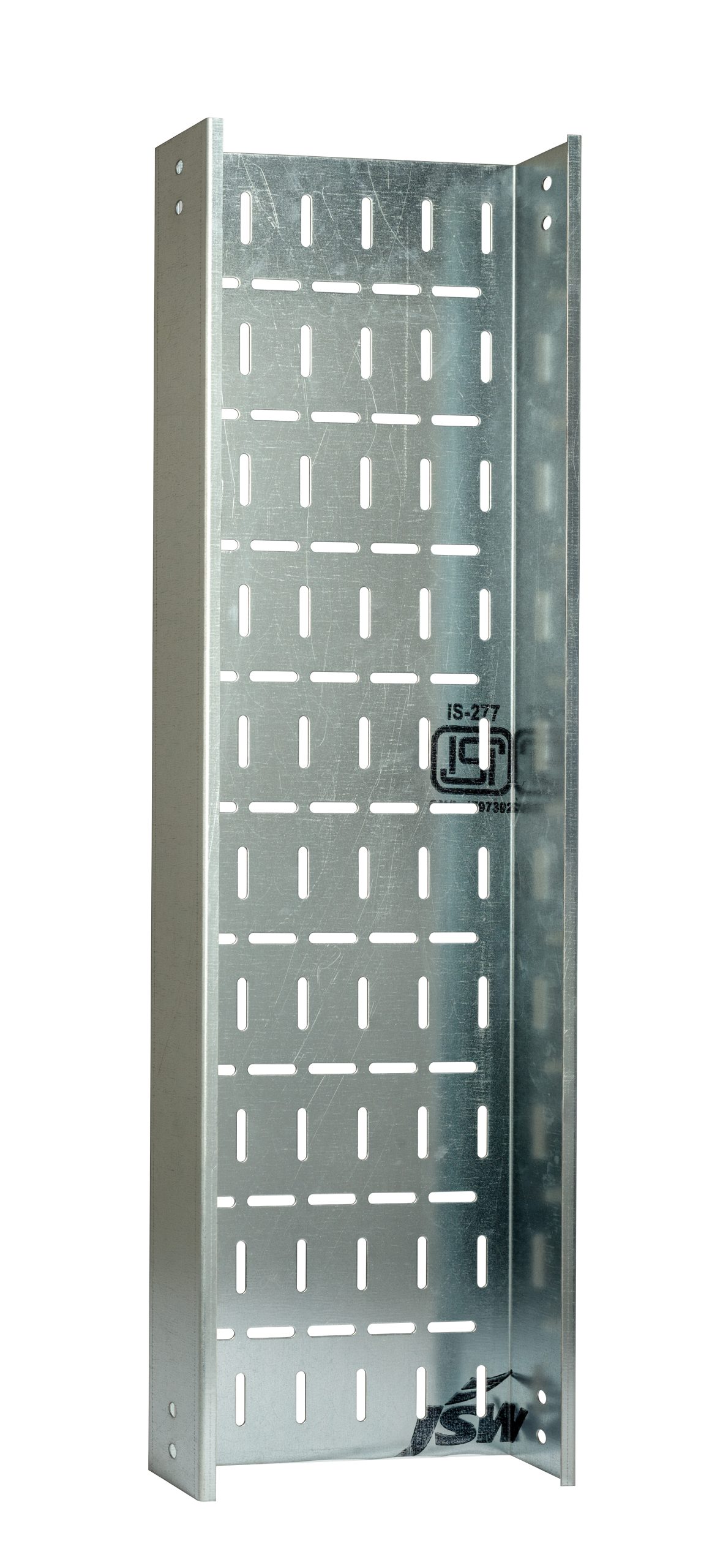

Perforated Type Cable Trays

  • Finishing : PreGalvanized, HotDipGalvanized, Powder Coated, Stainless Steel
  • Features : Moderated Ventilation with provision for cable support
  • Thickness(T): 1.2mm, 1.5mm, 2.0mm and 2.5mm
  • Width Range: 50mm to 1000mm
  • Height Range: 40mm to 100mm
  • Standard Length of 2500 mm (other sizes are available on request)
  • Pre Galvanized with 120 GSM Sheet Steel
  • Other Coating thickness will be provided as per requirement

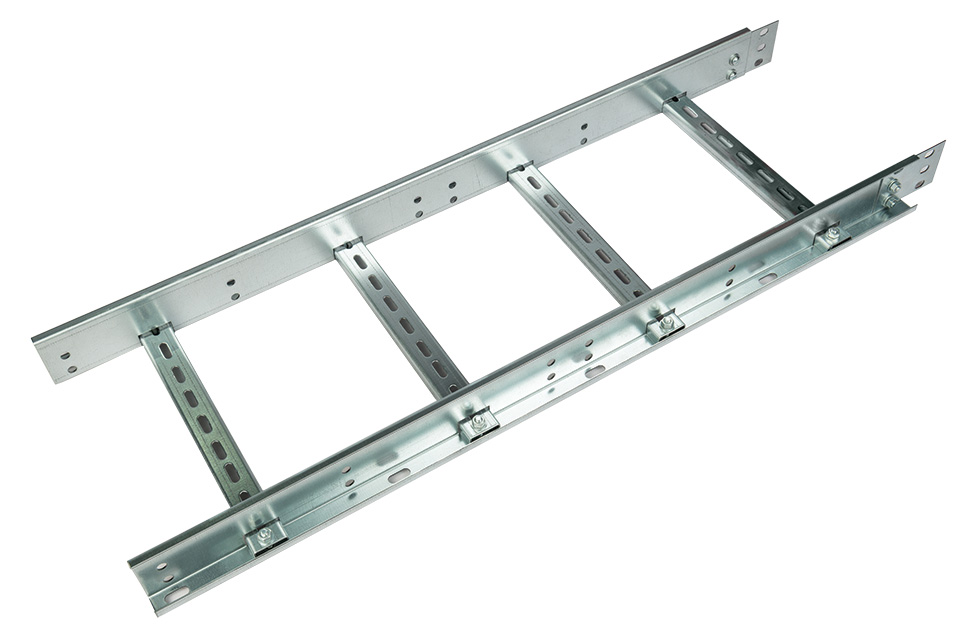

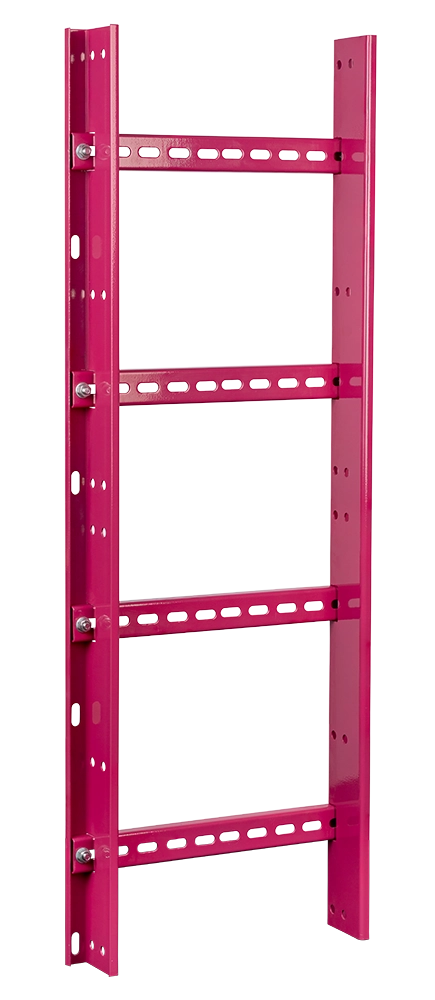

Bolted Type Ladder Cable Trays

  • Finishing: Pre Galvanized, Hot Dip Galvanized, Powder Coated
  • Features: Standard Length 2500mm (other sizes are available on
    request)
  • Thickness(T): 1.5mm, 2.0mm and 2.5mm
  • Width Range: 150mm to 1200mm
  • Height Range: 50mm to 100mm
  • Runs at every 250mm interval
  • Zinc Plated Fasteners: M8 x 30 – 10 Nos. / Tray

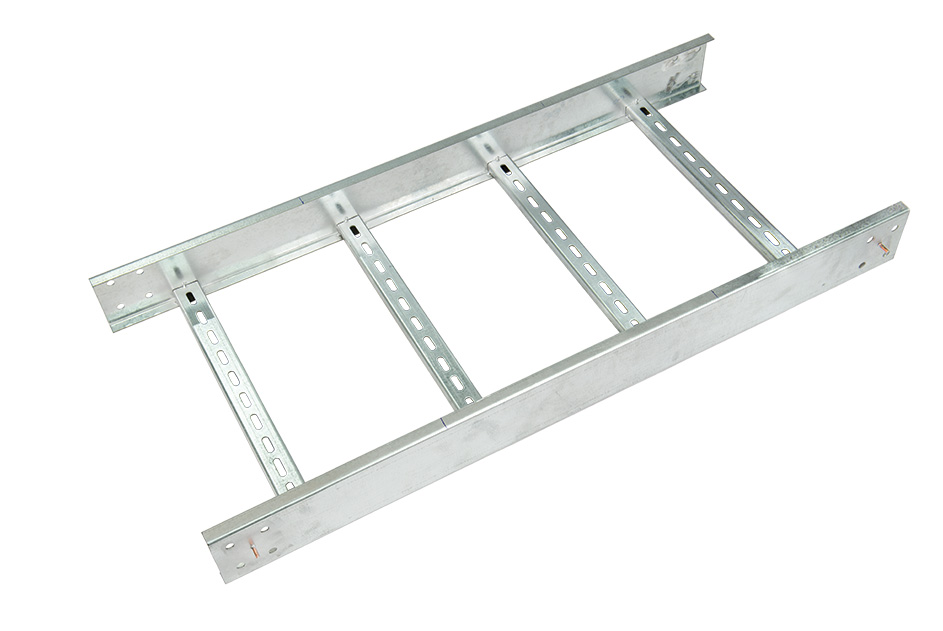

Welded Type Ladder Cable Trays

  • Finishing: Pre Galvanized, HotDipGalvanized, Powder Coated
  • Features: Standard Length 2500mm (other sizes are available on request)
  • Thickness(T): 1.5mm, 2.0mm and 2.5mm
  • Width Range: 150mm to 1200mm
  • Height Range: 50mm to 100mm • Runs at every 250mm interval
  • Coupler Plate with 2 Nos. / Tray
  • Zinc Plated Fasteners: M8 x 30 – 10 Nos. / Tray

ACCESSORIES - BOLTED TYPE 45o LADDER BENDS

Ladder - Horizontal Bend

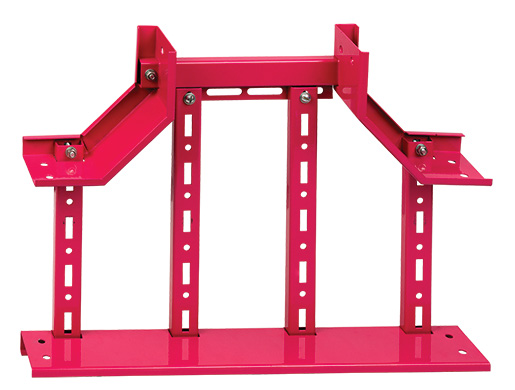

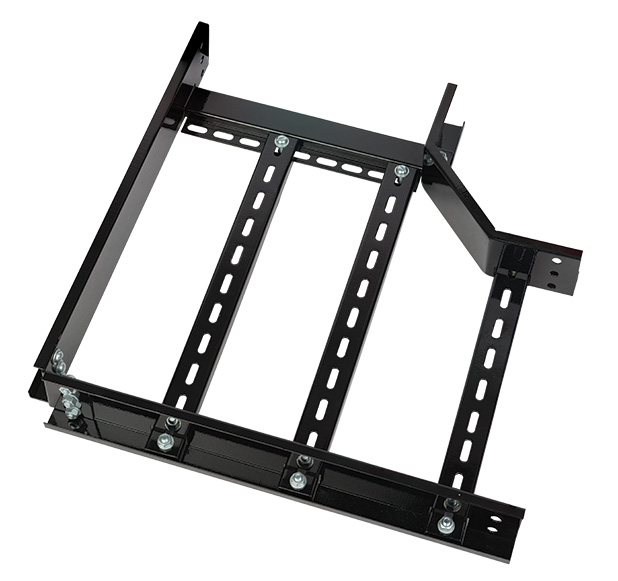

Ladder - Tee Bend

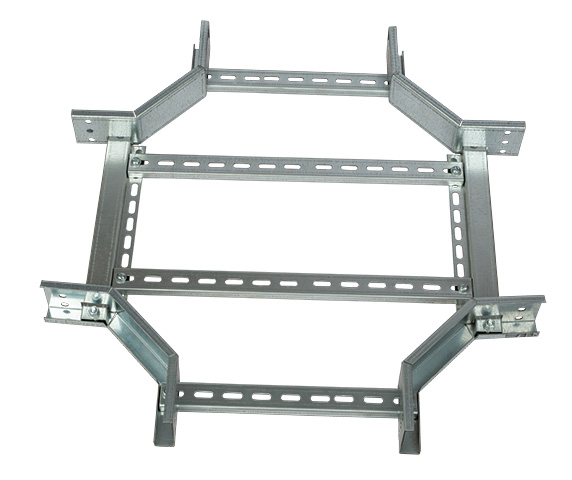

Ladder - Cross Bend

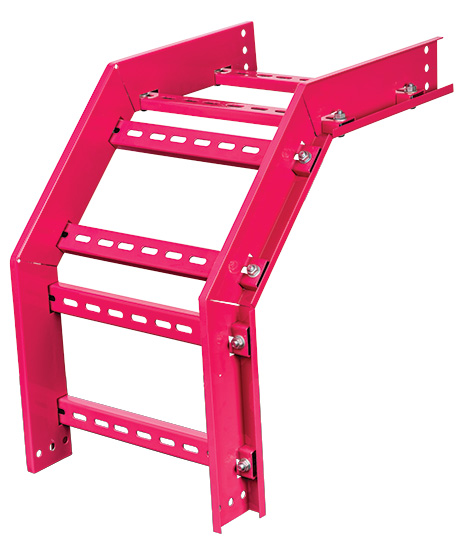

Outer Vertical Drop

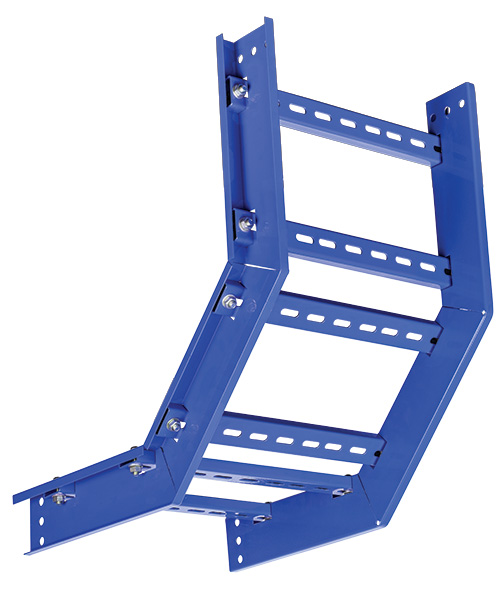

Inner Vertical Drop

Available sizes in Perforated Type Bends

Sl No.Width (W)Height (H)1.6 mm2.0 mm2.5 mm
115050YesYesYes
215075YesYesYes
3150100YesYesYes
420050YesYesYes
520075YesYesYes
6200100YesYesYes
730050YesYesYes
830075YesYesYes
9300100YesYesYes
1045050YesYesYes
1145075YesYesYes
12450100YesYesYes
1350050YesYesYes
1450075YesYesYes
15500100YesYesYes
1660050YesYesYes
1760075YesYesYes
18600100YesYesYes
1975050YesYesYes
2075075YesYesYes
21750100YesYesYes
2290050YesYesYes
2390075YesYesYes
24900100YesYesYes
25100050YesYesYes
26100075YesYesYes
271000100YesYesYes

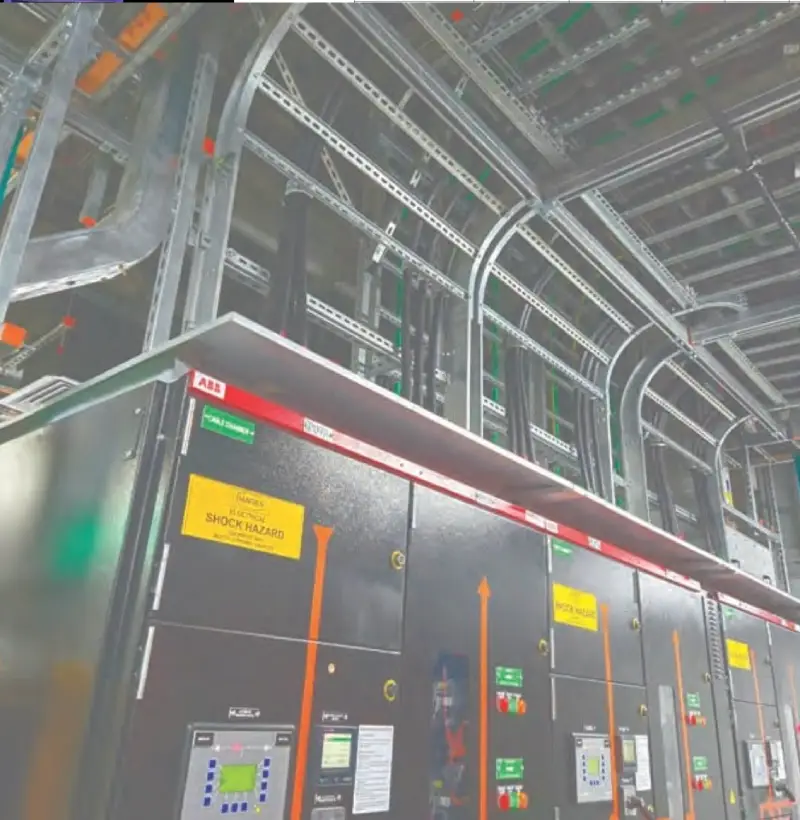

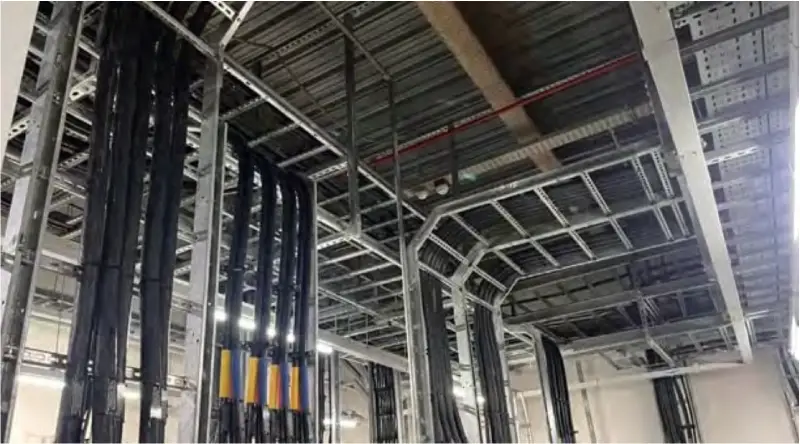

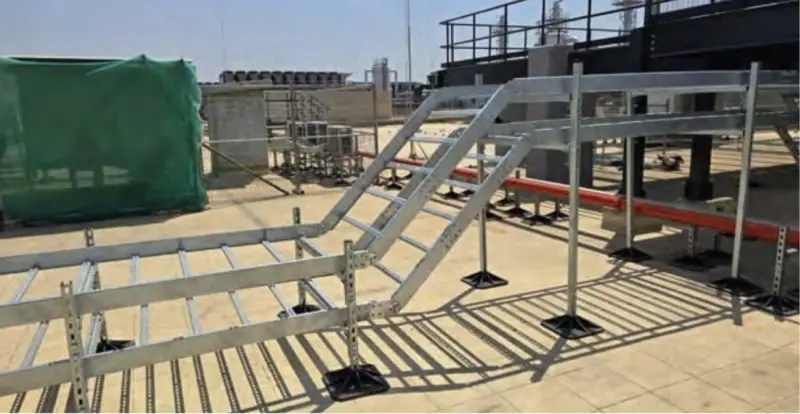

Our Projects

ACCESSORIES - RADIUS WELDED TYPE LADDER BENDS

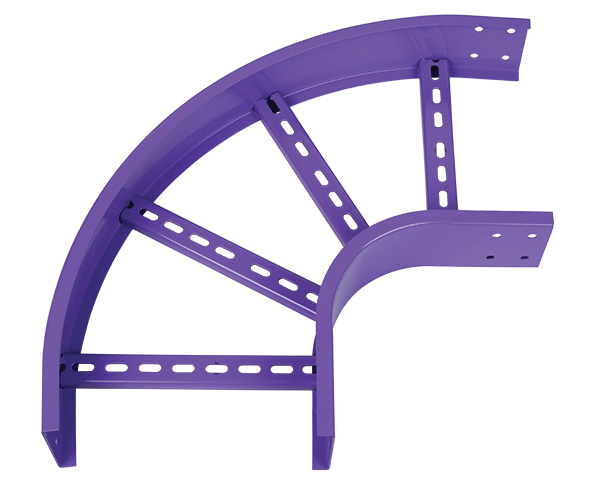

Welded Ladder - Horizontal Bend

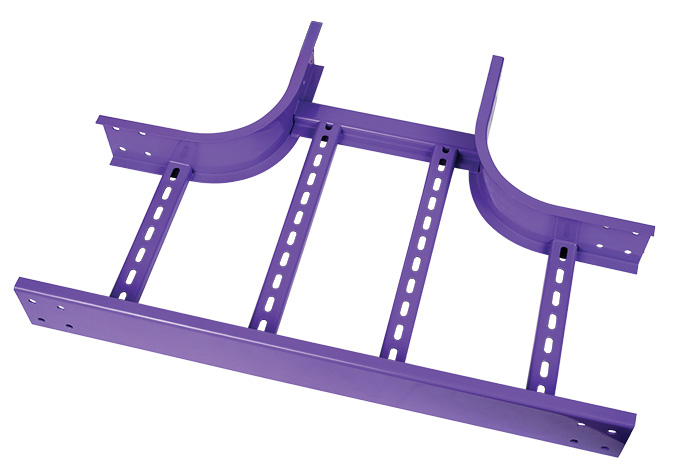

Welded Ladder - Tee Bend

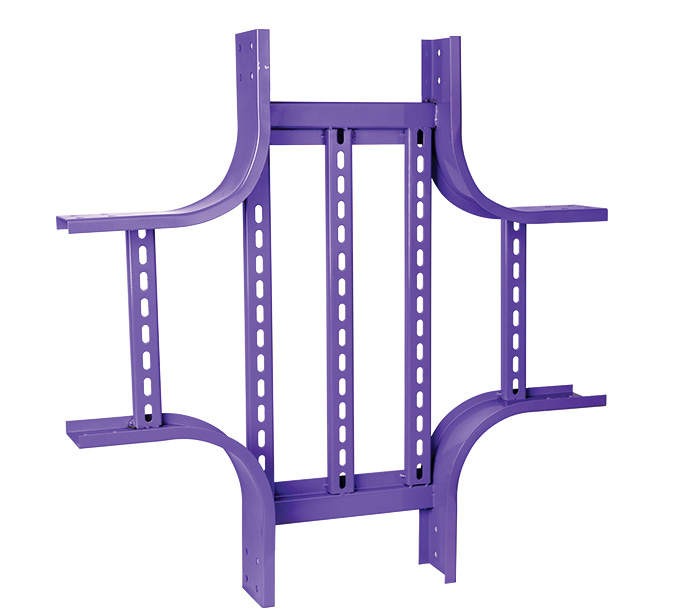

Welded Ladder - Cross Bend

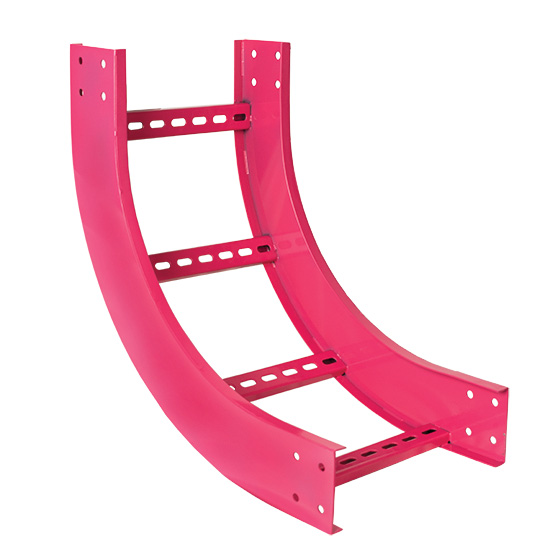

Welded Inner Vertical Drop

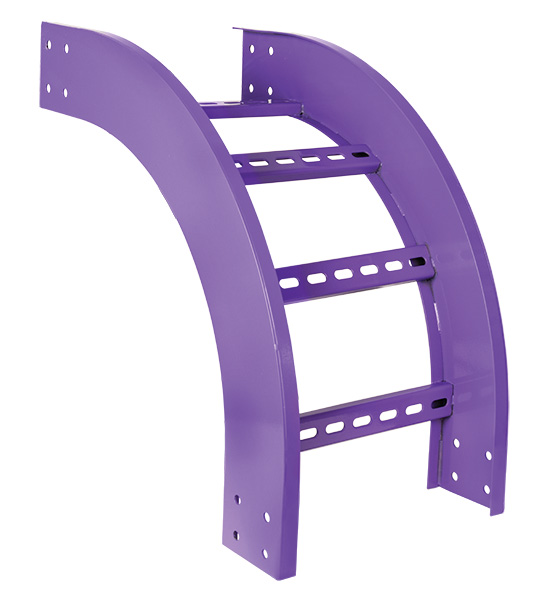

Welded Outer Vertical Drop

Sl No.Width (W)Height (H)1.6 mm2.0 mm2.5 mm
115050YesYesYes
215075YesYesYes
3150100YesYesYes
420050YesYesYes
520075YesYesYes
6200100YesYesYes
730050YesYesYes
830075YesYesYes
9300100YesYesYes
1045050YesYesYes
1145075YesYesYes
12450100YesYesYes
1350050YesYesYes
1450075YesYesYes
15500100YesYesYes
1660050YesYesYes
1760075YesYesYes
18600100YesYesYes
1975050YesYesYes
2075075YesYesYes
21750100YesYesYes
2290050YesYesYes
2390075YesYesYes
24900100YesYesYes
25100050YesYesYes
26100075YesYesYes
271000100YesYesYes
