Raceways

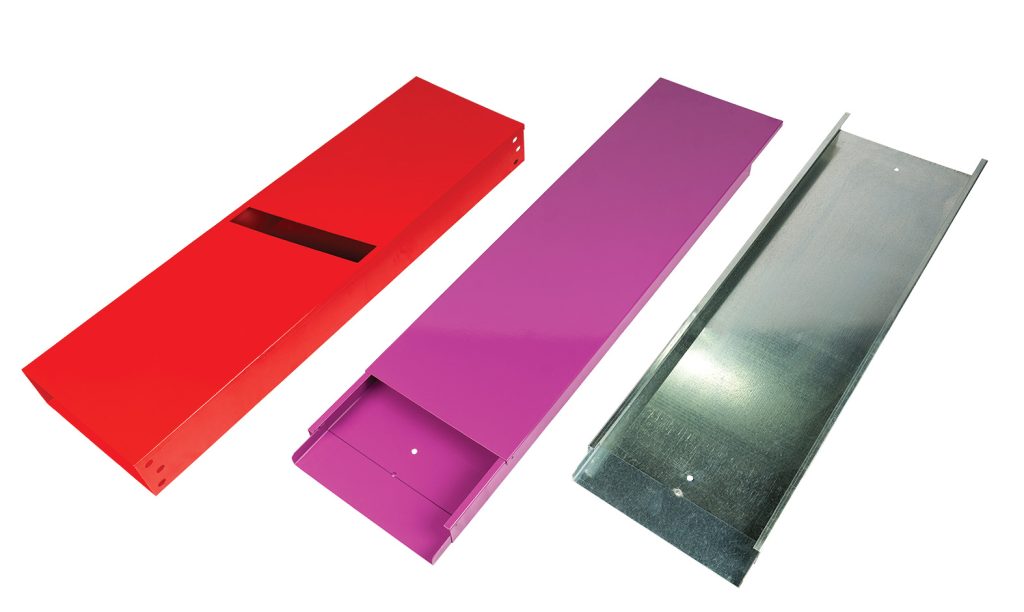

Ceiling Raceways and Profiles

Finishing: Pre Galvanized, HotDipGalvanized, Powder Coated
Features: Standard Length 2500mm (other sizes are available on request)
Thickness(T): 1.2mm, 1.5mm, 2.0mm and 2.5mm
Width Range: 50mm to 1000mm
Height Range: 40mm to 100mm
Customisation to project specific requirement
Zinc plated hardware is also provided

Raceway - Finishes

PreGalvanized,Hot DipGalvanized, Powder Coated, Aluminium, Stainless Steel

Floor Raceways

Finishing: PreGalvanized, Hot Dip Galvanized, Powder Coated
Features: Standard Length 2500mm (other sizes are available on request)
Thickness(T): 1.2mm, 1.5mm, 2.0mm and 2.5mm
Width Range: 50mm to 1000mm
Height Range: 40mm to 100mm
Customisation to project specific requirement
Other coating thickness will be provided as per requirement

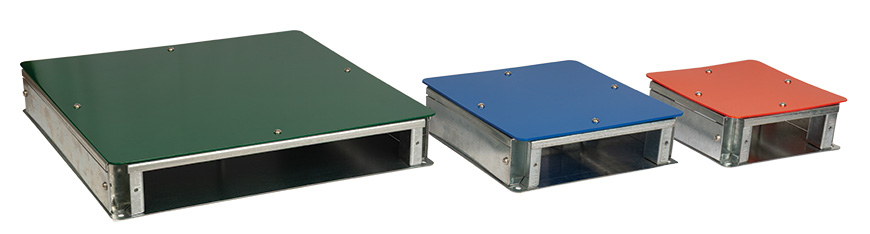

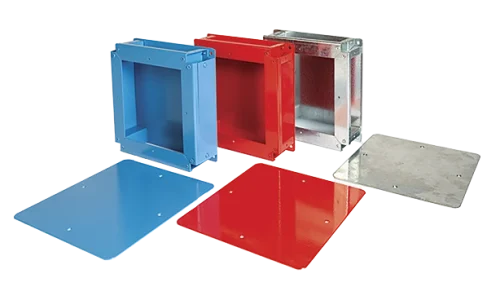

Floor Junction Boxes

Finishing: Pre Galvanized, Hot Dip Galvanized, Powder Coated
Removable covers for 2 sides and top
Height of the Floor Junction Box depends on the height of the raceways “+ 12mm”
Size: 170 x 170 x 60mm to 570 x 570 x 60mm(1.5mm and 2.0mm Thickness)

RACEWAY ACCESSORIES

ESMI Raceway Accessories are custom engineered to ensure seamless cable routing, secure connections, and reliable system performance. From bends and tees to reducers and couplers, every accessory is precision manufactured for easy installation, dimensional accuracy, and long-lasting durability across a wide range of mission-critical projects.

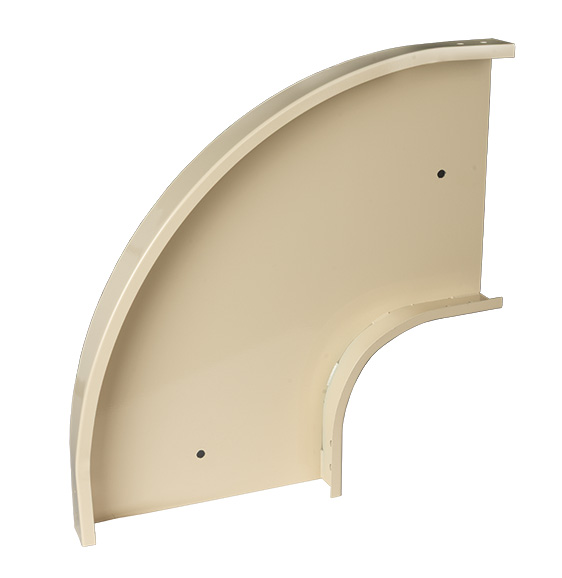

RACEWAY - Horizontal Bend

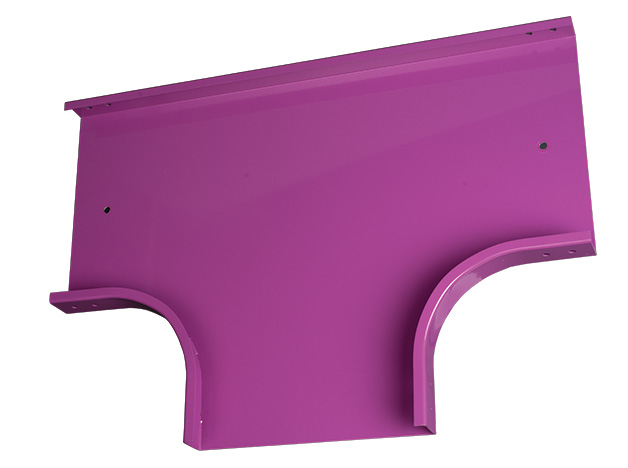

RACEWAY - Tee Bend

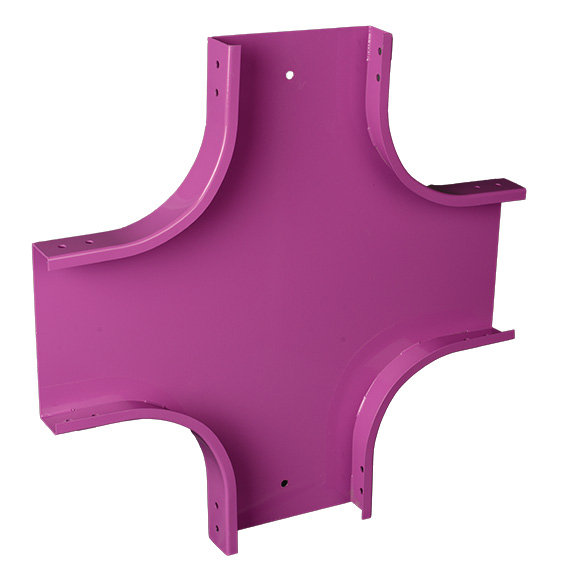

RACEWAY - Cross Bend

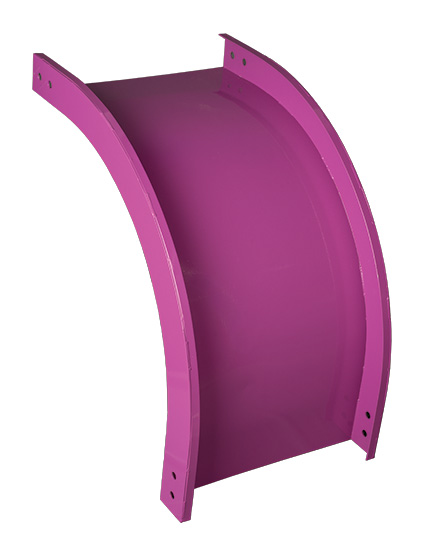

RACEWAY - Outer Vertical Drop

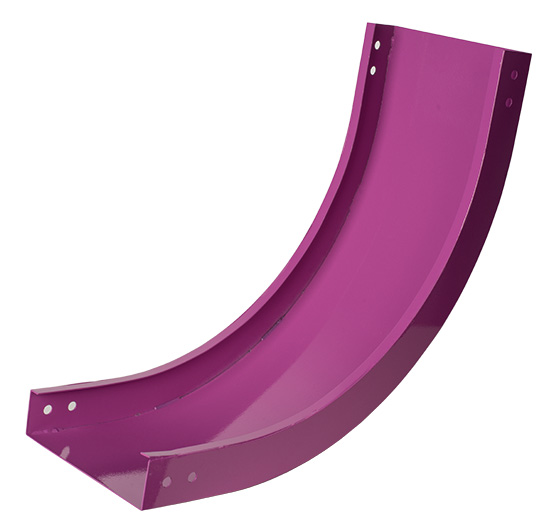

RACEWAY - Inner Vertical Drop

Available sizes and thicknesses

Sl No.	Width (W)	Height (H)	1.2 mm	1.6 mm	2.0 mm	2.5 mm
1	50	40	Yes	Yes	No	No
2	50	50	Yes	Yes	No	No
3	75	40	Yes	Yes	No	No
4	75	50	Yes	Yes	No	No
5	100	40	Yes	Yes	No	No
6	100	50	Yes	Yes	No	No
7	100	75	Yes	Yes	No	No
8	100	100	Yes	Yes	No	No
9	100	150	Yes	Yes	No	No
10	150	40	Yes	Yes	No	No
11	150	50	Yes	Yes	No	No
12	150	75	Yes	Yes	No	No
13	150	100	Yes	Yes	No	No
14	150	150	Yes	Yes	No	No
15	200	40	Yes	Yes	No	No
16	200	50	Yes	Yes	No	No
17	200	75	Yes	Yes	No	No
18	200	100	Yes	Yes	No	No
19	250	40	Yes	Yes	Yes	Yes
20	250	50	Yes	Yes	Yes	Yes
21	250	75	Yes	Yes	Yes	Yes
22	250	100	Yes	Yes	Yes	Yes
23	200	150	Yes	Yes	Yes	Yes
24	300	40	Yes	Yes	Yes	Yes
25	300	50	Yes	Yes	Yes	Yes
26	300	75	Yes	Yes	Yes	Yes
27	300	100	Yes	Yes	Yes	Yes
28	400	40	No	Yes	Yes	Yes
29	400	50	No	Yes	Yes	Yes
30	400	100	No	Yes	Yes	Yes
31	450	40	No	Yes	Yes	Yes
32	450	50	No	Yes	Yes	Yes
33	450	75	No	Yes	Yes	Yes
34	450	100	No	Yes	Yes	Yes
35	500	40	No	Yes	Yes	Yes
36	500	50	No	Yes	Yes	Yes
37	500	75	No	Yes	Yes	Yes
38	500	100	No	Yes	Yes	Yes
39	600	40	No	Yes	Yes	Yes
40	600	50	No	Yes	Yes	Yes
41	600	75	No	Yes	Yes	Yes
42	600	100	No	No	Yes	Yes
43	750	40	No	No	Yes	Yes
44	750	50	No	No	Yes	Yes
45	750	75	No	No	Yes	Yes
46	750	100	No	No	Yes	Yes
47	1000	40	No	No	Yes	Yes
48	1000	50	No	No	Yes	Yes
49	1000	75	No	No	Yes	Yes
50	1000	100	No	No	Yes	Yes

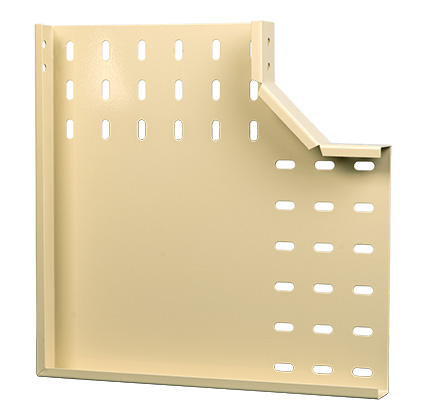

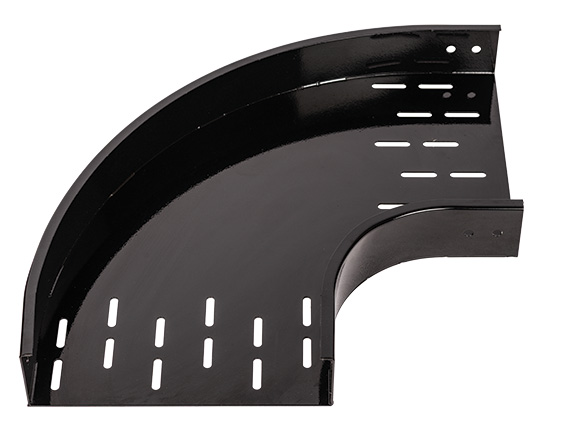

Perforated Horizontal Bend

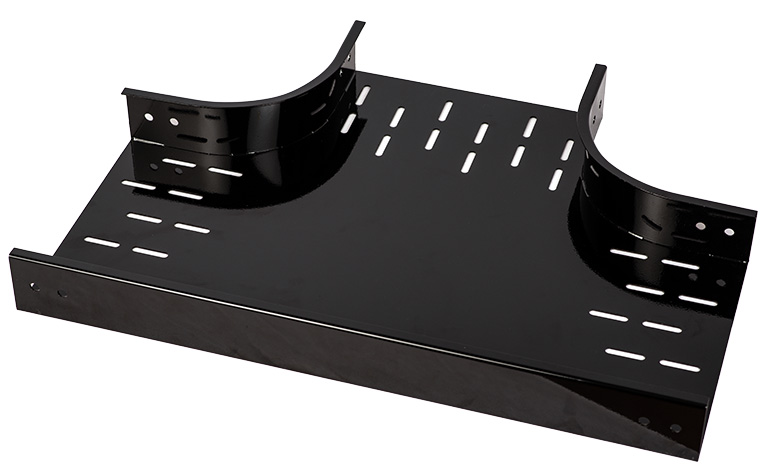

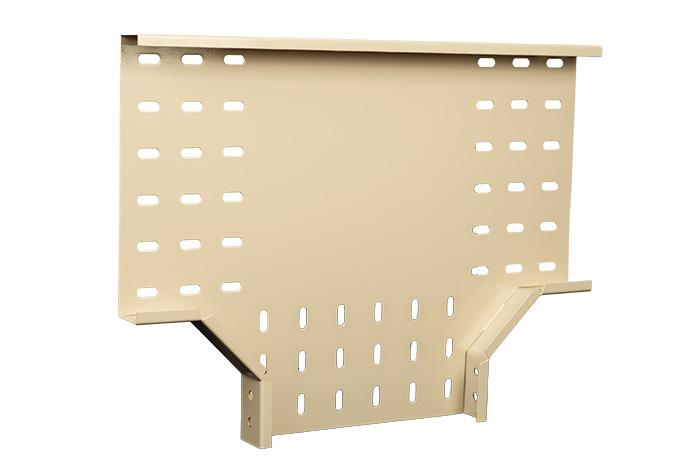

Perforated Tee Bend

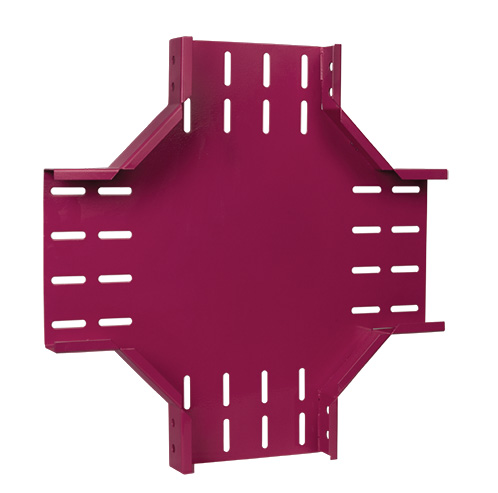

Perforated Cross Bend

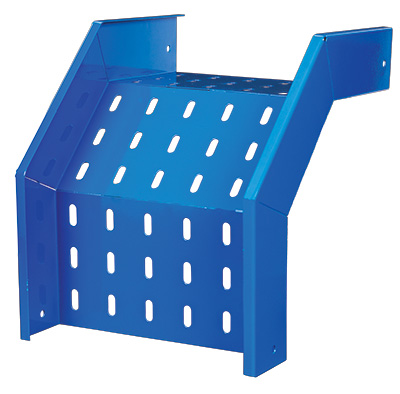

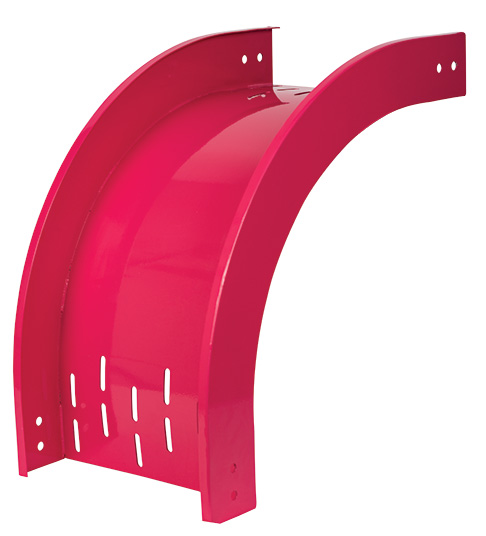

Perforated Outer Vertical Drop

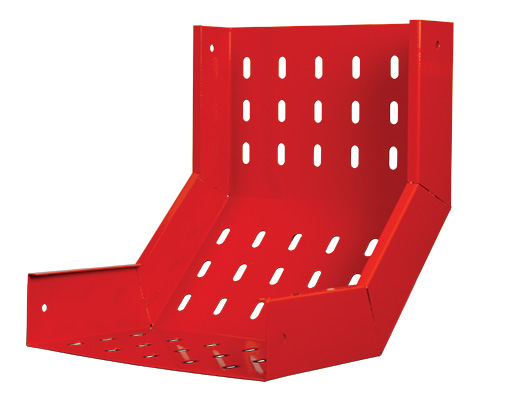

Perforated Inner Vertical Drop

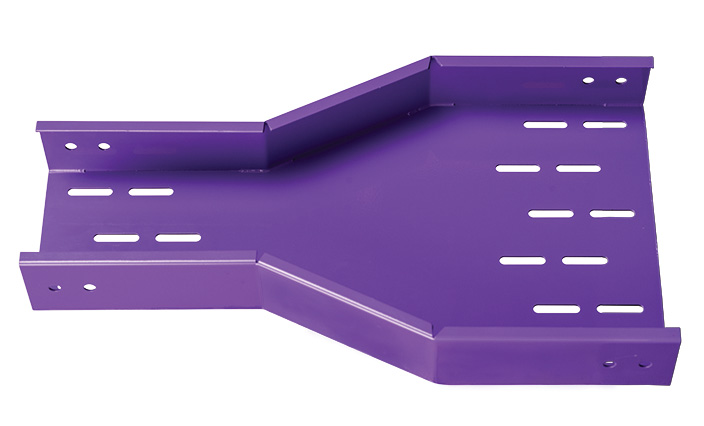

Perforated Reducer Bend

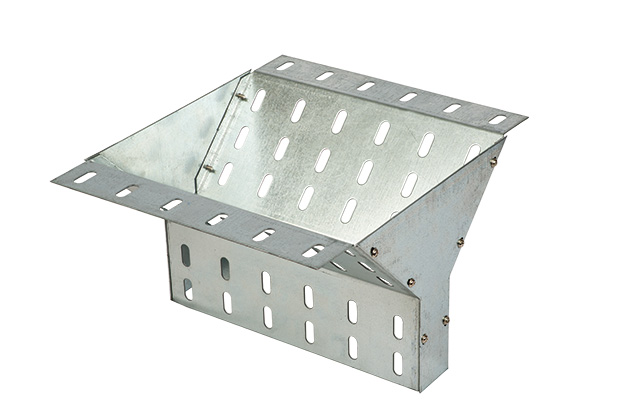

Y - Drop

Available sizes and thicknesses

Sl No.	Width (W)	Height (H)	1.2 mm	1.6 mm	2.0 mm	2.5 mm
1	50	40	Yes	Yes	No	No
2	50	50	Yes	Yes	No	No
3	75	40	Yes	Yes	No	No
4	75	50	Yes	Yes	No	No
5	100	40	Yes	Yes	No	No
6	100	50	Yes	Yes	No	No
7	100	75	Yes	Yes	No	No
8	100	100	Yes	Yes	No	No
9	100	150	Yes	Yes	No	No
10	150	40	Yes	Yes	No	No
11	150	50	Yes	Yes	No	No
12	150	75	Yes	Yes	No	No
13	150	100	Yes	Yes	No	No
14	150	150	Yes	Yes	No	No
15	200	40	Yes	Yes	No	No
16	200	50	Yes	Yes	No	No
17	200	75	Yes	Yes	No	No
18	200	100	Yes	Yes	No	No
19	250	40	Yes	Yes	Yes	Yes
20	250	50	Yes	Yes	Yes	Yes
21	250	75	Yes	Yes	Yes	Yes
22	250	100	Yes	Yes	Yes	Yes
23	200	150	Yes	Yes	Yes	Yes
24	300	40	Yes	Yes	Yes	Yes
25	300	50	Yes	Yes	Yes	Yes
26	300	75	Yes	Yes	Yes	Yes
27	300	100	Yes	Yes	Yes	Yes
28	400	40	No	Yes	Yes	Yes
29	400	50	No	Yes	Yes	Yes
30	400	100	No	Yes	Yes	Yes
31	450	40	No	Yes	Yes	Yes
32	450	50	No	Yes	Yes	Yes
33	450	75	No	Yes	Yes	Yes
34	450	100	No	Yes	Yes	Yes
35	500	40	No	Yes	Yes	Yes
36	500	50	No	Yes	Yes	Yes
37	500	75	No	Yes	Yes	Yes
38	500	100	No	Yes	Yes	Yes
39	600	40	No	Yes	Yes	Yes
40	600	50	No	Yes	Yes	Yes
41	600	75	No	Yes	Yes	Yes
42	600	100	No	No	Yes	Yes
43	750	40	No	No	Yes	Yes
44	750	50	No	No	Yes	Yes
45	750	75	No	No	Yes	Yes
46	750	100	No	No	Yes	Yes
47	1000	40	No	No	Yes	Yes
48	1000	50	No	No	Yes	Yes
49	1000	75	No	No	Yes	Yes
50	1000	100	No	No	Yes	Yes

PR - Horizontal Bend

PR - Tee Bend

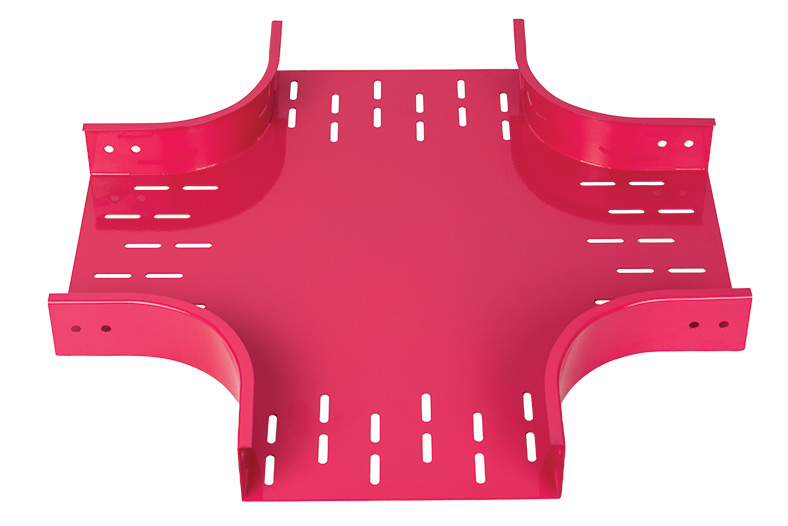

PR - Cross Bend

PR - Outer Vertical Drop

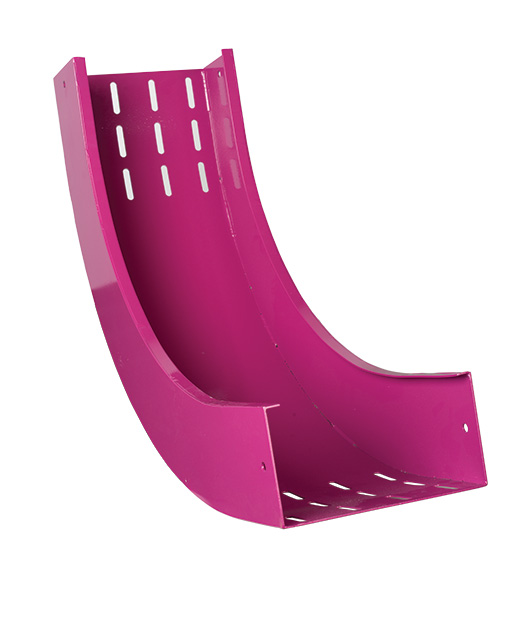

PR - Inner Vertical Drop

Available sizes and thicknesses

Sl No.	Width (W)	Height (H)	1.2 mm	1.6 mm	2.0 mm	2.5 mm
1	50	40	Yes	Yes	No	No
2	50	50	Yes	Yes	No	No
3	75	40	Yes	Yes	No	No
4	75	50	Yes	Yes	No	No
5	100	40	Yes	Yes	No	No
6	100	50	Yes	Yes	No	No
7	100	75	Yes	Yes	No	No
8	100	100	Yes	Yes	No	No
9	100	150	Yes	Yes	No	No
10	150	40	Yes	Yes	No	No
11	150	50	Yes	Yes	No	No
12	150	75	Yes	Yes	No	No
13	150	100	Yes	Yes	No	No
14	150	150	Yes	Yes	No	No
15	200	40	Yes	Yes	No	No
16	200	50	Yes	Yes	No	No
17	200	75	Yes	Yes	No	No
18	200	100	Yes	Yes	No	No
19	250	40	Yes	Yes	Yes	Yes
20	250	50	Yes	Yes	Yes	Yes
21	250	75	Yes	Yes	Yes	Yes
22	250	100	Yes	Yes	Yes	Yes
23	200	150	Yes	Yes	Yes	Yes
24	300	40	Yes	Yes	Yes	Yes
25	300	50	Yes	Yes	Yes	Yes
26	300	75	Yes	Yes	Yes	Yes
27	300	100	No	Yes	Yes	Yes
28	400	40	No	Yes	Yes	Yes
29	400	50	No	Yes	Yes	Yes
30	400	100	No	Yes	Yes	Yes
31	450	40	No	Yes	Yes	Yes
32	450	50	No	Yes	Yes	Yes
33	450	75	No	Yes	Yes	Yes
34	450	100	No	Yes	Yes	Yes
35	500	40	No	Yes	Yes	Yes
36	500	50	No	Yes	Yes	Yes
37	500	75	No	Yes	Yes	Yes
38	500	100	No	Yes	Yes	Yes
39	600	40	No	Yes	Yes	Yes
40	600	50	No	Yes	Yes	Yes
41	600	75	No	Yes	Yes	Yes
42	600	100	No	No	Yes	Yes
43	750	40	No	No	Yes	Yes
44	750	50	No	No	Yes	Yes
45	750	75	No	No	Yes	Yes
46	750	100	No	No	Yes	Yes
47	1000	40	No	No	Yes	Yes
48	1000	50	No	No	Yes	Yes
49	1000	75	No	No	Yes	Yes
50	1000	100	No	No	Yes	Yes
